基础组件示例

展示ArkTS常用基础组件的使用方法和最佳实践。

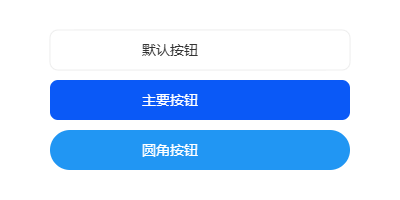

按钮组件

按钮示例
@Component
struct ButtonExample {
    build() {
        Column({ space: 20 }) {
            Button('默认按钮')
                .width('80%')
                .height(40)

            Button('主要按钮')
                .width('80%')
                .height(40)
                .backgroundColor('#0A59F7')

            Button('圆角按钮')
                .width('80%')
                .height(40)
                .borderRadius(20)
        }
        .width('100%')
        .padding(20)
    }
}

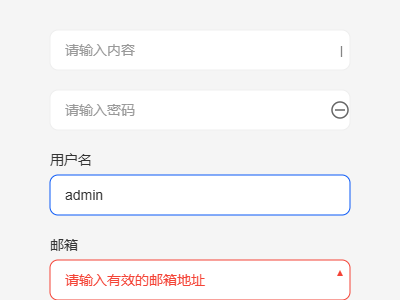

输入组件

输入示例
@Component
struct InputExample {
    @State text: string = ''

    build() {
        Column({ space: 20 }) {
            TextInput({ placeholder: '请输入内容' })
                .width('80%')
                .height(40)
                .onChange((value: string) => {
                    this.text = value
                })

            Text(`输入内容:${this.text}`)
                .fontSize(16)
        }
        .width('100%')
        .padding(20)
    }
}

布局示例

展示ArkTS中常用的布局方式和响应式设计实现。

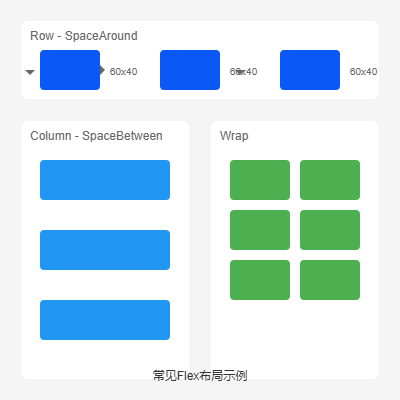

Flex布局

Flex布局示例
@Component
struct FlexLayoutExample {
    build() {
        Flex({
            direction: FlexDirection.Row,
            wrap: FlexWrap.Wrap,
            justifyContent: FlexAlign.SpaceAround
        }) {
            ForEach([1, 2, 3, 4], (item) => {
                Column()
                    .width(100)
                    .height(100)
                    .backgroundColor('#0A59F7')
                    .margin(10)
            })
        }
        .width('100%')
        .padding(20)
    }
}

交互示例

展示用户交互相关的功能实现,如手势识别、事件处理等。

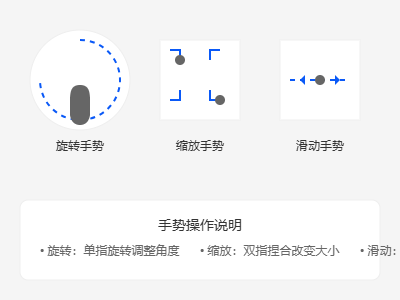

手势识别

手势识别示例
@Component
struct GestureExample {
    @State rotation: number = 0

    build() {
        Column() {
            Image($r('app.media.logo'))
                .width(200)
                .height(200)
                .rotate({ angle: this.rotation })
                .gesture(
                    PanGesture()
                        .onActionUpdate((event: GestureEvent) => {
                            this.rotation += event.angle
                        })
                )
        }
        .width('100%')
        .height('100%')
        .justifyContent(FlexAlign.Center)
    }
}

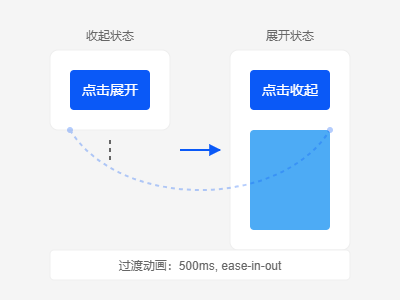

动画示例

展示各种动画效果的实现方式。

过渡动画

动画示例
@Component
struct TransitionExample {
    @State isExpanded: boolean = false

    build() {
        Column() {
            Button('点击展开')
                .onClick(() => {
                    animateTo({ duration: 500 }, () => {
                        this.isExpanded = !this.isExpanded
                    })
                })

            Column()
                .width('100%')
                .height(this.isExpanded ? 200 : 0)
                .backgroundColor('#0A59F7')
                .transition('height')
        }
        .padding(20)
    }
}

项目实战

完整的项目示例,展示实际应用中的最佳实践。

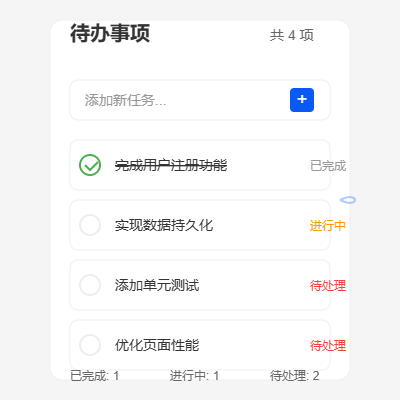

待办事项应用

待办事项应用

功能特点

  • 任务的添加、删除和编辑
  • 任务状态管理(待处理、进行中、已完成)
  • 任务优先级设置
  • 任务分类管理
  • 数据持久化存储
  • 任务统计和进度展示

技术要点

  • 状态管理:使用@State装饰器管理组件状态
  • 数据持久化:使用首选项存储任务数据
  • 组件复用:封装通用的任务项组件
  • 动画效果:实现平滑的状态切换动画
// 任务数据模型
class TodoItem {
    id: number
    title: string
    status: 'pending' | 'inProgress' | 'completed'
    priority: 'low' | 'medium' | 'high'
    createTime: number

    constructor(title: string) {
        this.id = Date.now()
        this.title = title
        this.status = 'pending'
        this.priority = 'medium'
        this.createTime = Date.now()
    }
}

// 任务项组件
@Component
struct TodoItemComponent {
    @ObjectLink item: TodoItem
    @Link onStatusChange: (id: number, status: string) => void
    @Link onDelete: (id: number) => void

    build() {
        Row() {
            Row({ space: 10 }) {
                Checkbox()
                    .select(this.item.status === 'completed')
                    .onChange((value) => {
                        this.onStatusChange(this.item.id,
                            value ? 'completed' : 'pending')
                    })

                Text(this.item.title)
                    .fontSize(16)
                    .decoration({ type: this.item.status === 'completed' ?
                        TextDecorationType.LineThrough : TextDecorationType.None })
            }
            .layoutWeight(1)

            Image($r('app.media.delete'))
                .width(24)
                .height(24)
                .onClick(() => this.onDelete(this.item.id))
        }
        .width('100%')
        .height(50)
        .padding(10)
        .backgroundColor(Color.White)
        .borderRadius(8)
    }
}

// 主页面组件
@Component
struct TodoListPage {
    @State todoItems: TodoItem[] = []
    @State newTaskTitle: string = ''

    aboutToAppear() {
        // 从持久化存储加载数据
        this.loadTodoItems()
    }

    async loadTodoItems() {
        try {
            const storage = await preferences.getPreferences(globalThis.context, 'todo_storage')
            const items = await storage.get('items', '[]')
            this.todoItems = JSON.parse(items)
        } catch (err) {
            console.error('Failed to load todo items:', err)
        }
    }

    async saveTodoItems() {
        try {
            const storage = await preferences.getPreferences(globalThis.context, 'todo_storage')
            await storage.put('items', JSON.stringify(this.todoItems))
            await storage.flush()
        } catch (err) {
            console.error('Failed to save todo items:', err)
        }
    }

    build() {
        Column() {
            // 顶部标题
            Text('待办事项')
                .fontSize(24)
                .fontWeight(FontWeight.Bold)
                .margin({ top: 20, bottom: 20 })

            // 添加任务输入框
            Row({ space: 10 }) {
                TextInput({ placeholder: '添加新任务...' })
                    .width('80%')
                    .height(40)
                    .onChange((value) => {
                        this.newTaskTitle = value
                    })

                Button('+')
                    .width(40)
                    .height(40)
                    .onClick(() => {
                        if (this.newTaskTitle.trim()) {
                            this.todoItems.push(new TodoItem(this.newTaskTitle))
                            this.newTaskTitle = ''
                            this.saveTodoItems()
                        }
                    })
            }
            .padding(10)
            .width('100%')

            // 任务列表
            List() {
                ForEach(this.todoItems, (item) => {
                    ListItem() {
                        TodoItemComponent({
                            item: item,
                            onStatusChange: (id, status) => {
                                const index = this.todoItems.findIndex(item => item.id === id)
                                if (index !== -1) {
                                    this.todoItems[index].status = status
                                    this.saveTodoItems()
                                }
                            },
                            onDelete: (id) => {
                                this.todoItems = this.todoItems.filter(item => item.id !== id)
                                this.saveTodoItems()
                            }
                        })
                    }
                    .margin({ bottom: 10 })
                })
            }
            .width('100%')
            .layoutWeight(1)
            .padding(10)

            // 底部统计
            Row() {
                Text(`总计: ${this.todoItems.length}`)
                Text(`已完成: ${this.todoItems.filter(item =>
                    item.status === 'completed').length}`)
                Text(`待处理: ${this.todoItems.filter(item =>
                    item.status === 'pending').length}`)
            }
            .width('100%')
            .justifyContent(FlexAlign.SpaceAround)
            .padding(10)
            .backgroundColor('#f5f5f5')
        }
        .width('100%')
        .height('100%')
        .backgroundColor('#f0f0f0')
    }
}
